Mini Inverter Series from ABB Emergi-Lite Offers Emergency Lighting Power

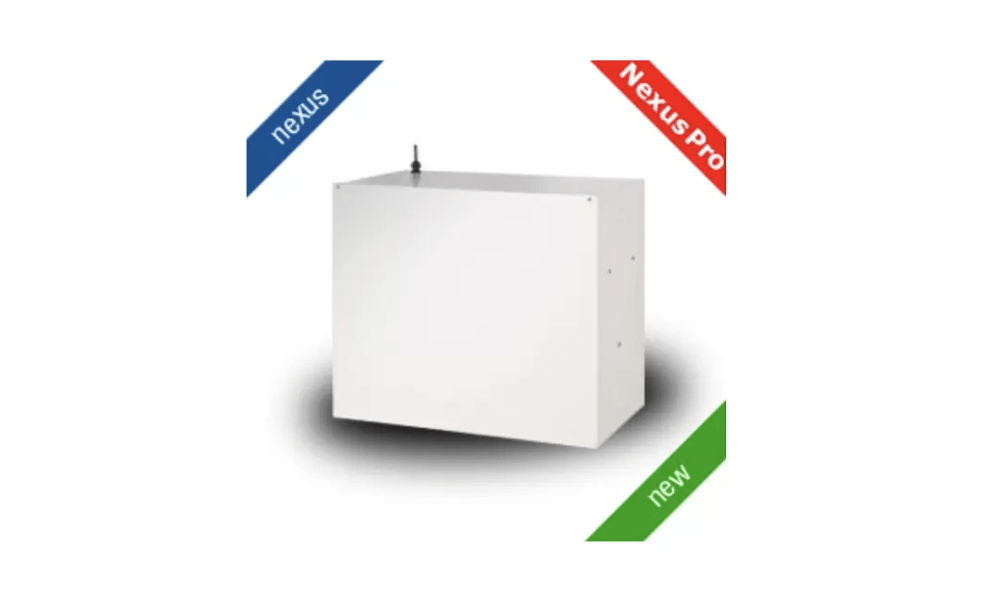

The Mini Inverter from ABB Emergi-Lite is a UL Listed stand-alone pure sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, it will supply power from the onboard battery supply. The Mini-Inverter works in conjunction with incandescent, LED, and fluorescent fixture types and will automatically run switched, normally-on, or normally-off designated emergency fixtures.
Available in 125W, 250W, 400W and 720W versions, the Mini Inverter minimizes maintenance with a standard non-audible advanced diagnostics and self-testing microcontroller-based system and optional Nexus® compatibility.
The Mini Inverter Series is ideal for applications requiring an emergency source for lighting arrangements that utilize multiple lamp and fixture types and is available in surface mount and comes with a one-year warranty and nine-year pro-rata battery warranty.
Features
- Lamps Operated: incandescent LED, fluorescent lamps and ballast combinations, including TRIAC dimmable ballasts

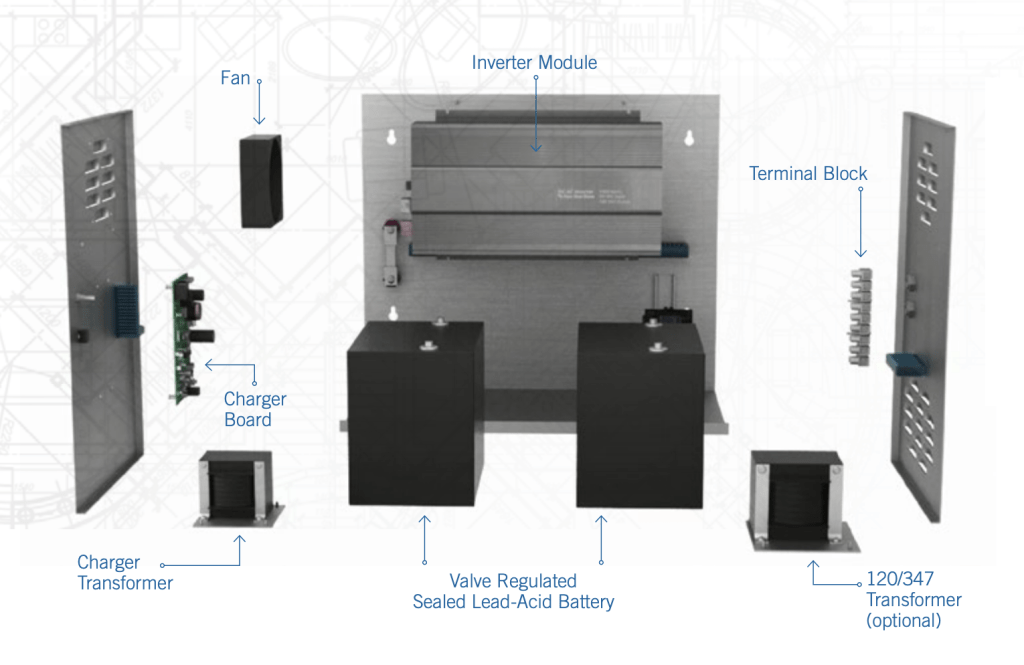

- Components: high-efficiency pure sine wave inverter with temperature-compensated charger 12V oversized valve regulated lead acid (VRLA) battery
- VRLA battery provides long-life and is maintenance free
- Load Capacity: 125W, 250W, 400W, 720W
- Housing: heavy-duty 14-gauge steel cabinet with white powder-coat paint finish
- Emergency lighting supplied from one convenient, reliable source
- Input/output voltage 120/120V 60Hz or 347/347V 60 Hz
- Replaceable output fuse protection
- Line voltage allows for remote mounting of emergency fixtures at distances up to 1000 feet
- Low battery voltage disconnect
- Unit comes standard with electronic lockout and brownout circuits
- Meets or exceeds all National Electrical Code and Life Safety Code Emergency Lighting Requirements
- May accept load to 80% capacity when load feature power factor of 0.9 or more
- Non audible auto-diagnostic is standard. NEXUS system interface available with an improved minimum lost load detection of 10%
- Standard lighting control override for 0-10V dimming systems
More information about the Mini-Inverter from ABB Emergi-Lite
