ERCO Presents a New Generation of In-ground Luminaires

The way we handle light in outdoor spaces has changed. Protecting nature, avoiding light pollution, and saving energy – all of this requires highly precise lighting tools that direct light only where it is truly needed. Such as the Tesis New in-ground luminaires from ERCO with their tiltable light heads, interchangeable and zoom optics, and the innovative semi-recessed wallwasher.

Less is more – modern outdoor lighting concepts focus on quality rather than quantity. Instead of turning night into day, the goal is to meet many different needs: On the one hand, people’s desire for orientation, safety, quality of stay and an attractive urban environment. On the other hand, the need to protect flora, fauna and the climate. Today, this can be achieved through careful planning and the use of highly precise lighting tools like the Tesis New in-ground luminaires from ERCO. With this type of installation, precision is particularly important – because poor alignment or uncontrolled spill light quickly leads to avoidable light pollution.

Making the most of in-ground lighting

The new Tesis generation enables lighting designers to continue using in-ground luminaires responsibly and with all their advantages: They blend seamlessly into their surroundings, in line with ERCO’s philosophy of “light instead of luminaires”. Some models can even be integrated into traffic areas and they create a high level of attention due to their unusual direction of light. In-ground wallwashers serve an equally important function outdoors as ceiling-recessed wallwashers do indoors: They provide vertical illuminance, which is essential for spatial perception – for example, on façades and walls. When it comes to upgrading existing systems, the Tesis New in-ground luminaires retain the proven installation dimensions and housing qualities of their predecessors. However, the lighting technology brings major advancements.

Semi-recessed wallwashers – for extra wide luminaire spacing

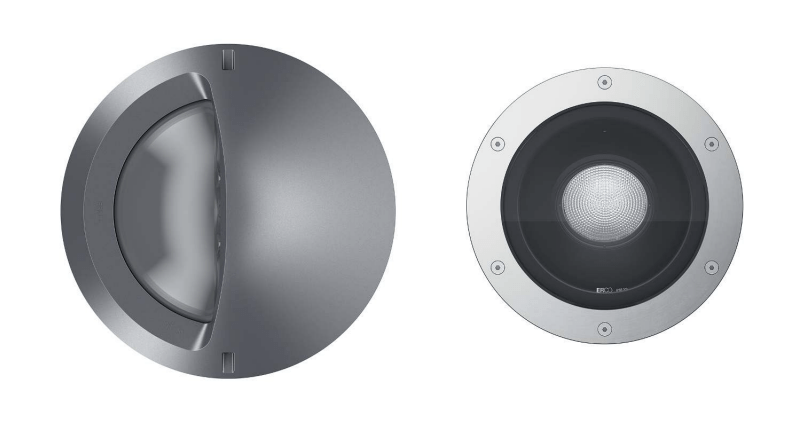

Because vertical lighting is a key focus in outdoor lighting design, the Tesis New family offers two differentiated solutions. A completely new luminaire type in the ERCO range is the Tesis New semi-recessed wallwasher: Its robust, dome-shaped housing slightly protrudes from the ground surface. The advantage: more flexibility in positioning and seamless, extremely uniform wallwashing. A wall offset of just 1/6 of the wall height is sufficient, while the luminaire spacing is based on the height of the wall. This flexibility makes planning easier. At the same time, wider luminaire spacing means fewer luminaires – which reduces costs for purchase, installation and operation.

Further options for vertical light

The flush-mounted Tesis New wallwashers also project light horizontally onto façades and walls with impressive uniformity. They are ideal for buildings in traffic-calmed zones and squares, since these luminaires – with the appropriate installation housings – are designed to be drive-over capable. They are positioned based on classic wallwasher rules: With approximately 1/3 of the wall height as the offset and up to 1.3 times that distance as the luminaire spacing. With size 2, ERCO introduces a miniaturised Tesis New wallwasher with a diameter of just 56mm – achieving high impact even in the smallest of spaces.

Adaptive in-ground directional spotlights

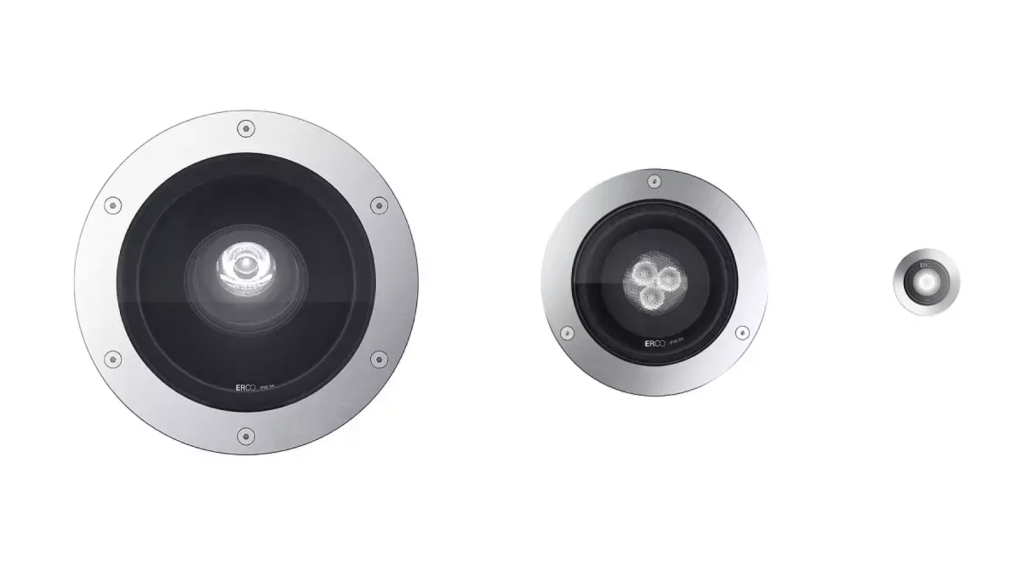

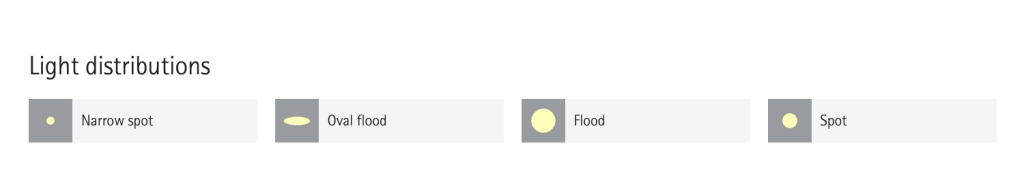

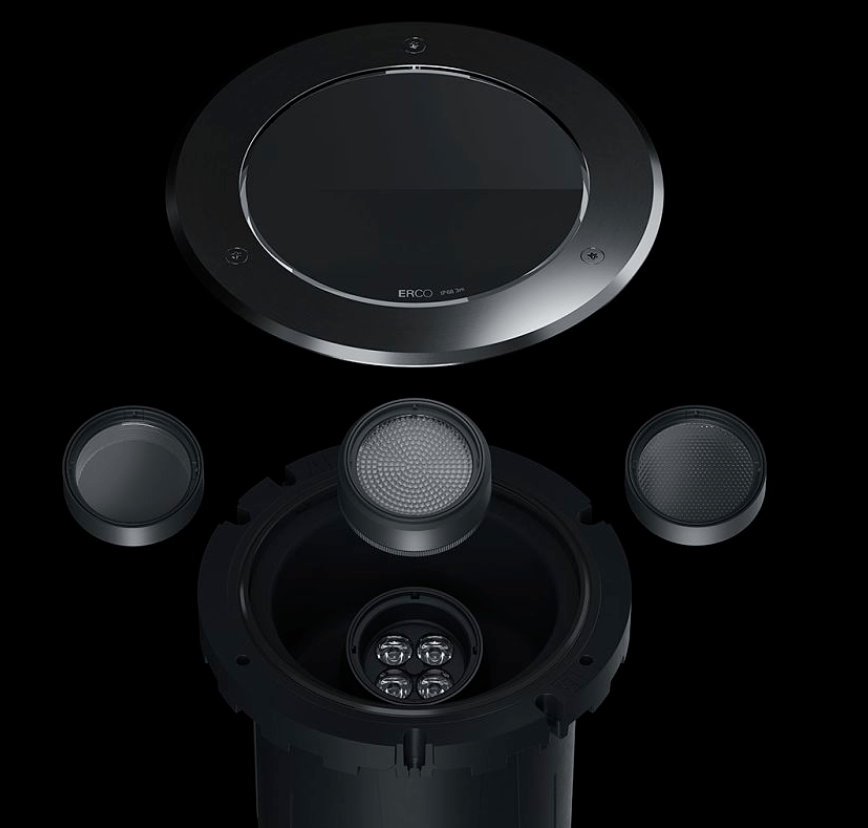

As directional spotlights, the Tesis New in-ground luminaires offer a level of planning flexibility never seen before – they are equipped with interchangeable lenses for up to 8 different light distributions: With just a few steps on site, a spot (16°) can be converted into an oval beam (20° x 60°) – without voiding the warranty. Even greater flexibility is offered by Tesis New with its spot zoom optic (15°–65°) or oval zoom optic (20° x 70° – 75° x 60°). The combination of stepless zoom and up to 30° tilt angle makes it possible to align the light head perfectly with the object being illuminated, adjusting the light beam until it fits precisely. This ensures optimal lighting performance while reliably preventing light pollution. Tesis New directional luminaires with interchangeable lenses or zoom optics are available from ERCO in three sizes, with luminous flux from 304 lm to 4192 lm.

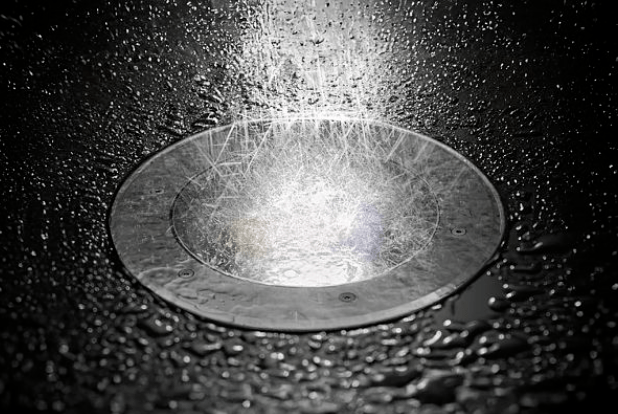

Proven durability and robustness

In terms of technical quality, Tesis New stays true to its predecessors: With highly efficient LED modules and control gear, and with robust, weatherproof and corrosion-resistant housings. According to ERCO’s “Lighting Durability” factory standard, they are now designed for a 20-year service life. Variants are available with flush or covered installation details. The “ERCO individual” service also caters for project-specific requests – from anti-slip safety glass to special colours for the semi-recessed wallwasher. All in all, in-ground luminaires with Tesis New are well equipped to continue playing their role in outdoor lighting – even in projects with the highest demands in terms of lighting precision and environmental awareness.

More information about the Tesis New in-ground luminaires from ERCO
