Acclaim Lighting Develops Linear LED Fixtures for High Output, All-Weather Linear Illumination

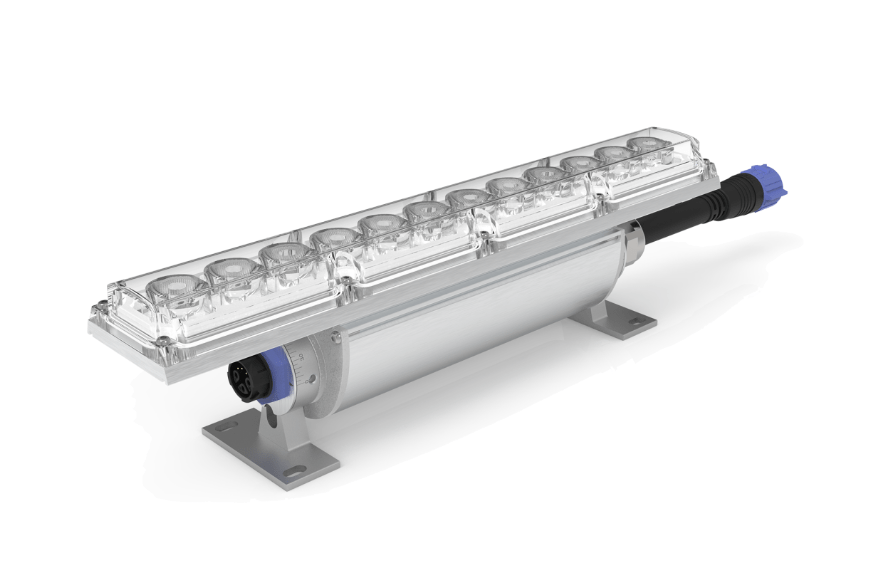

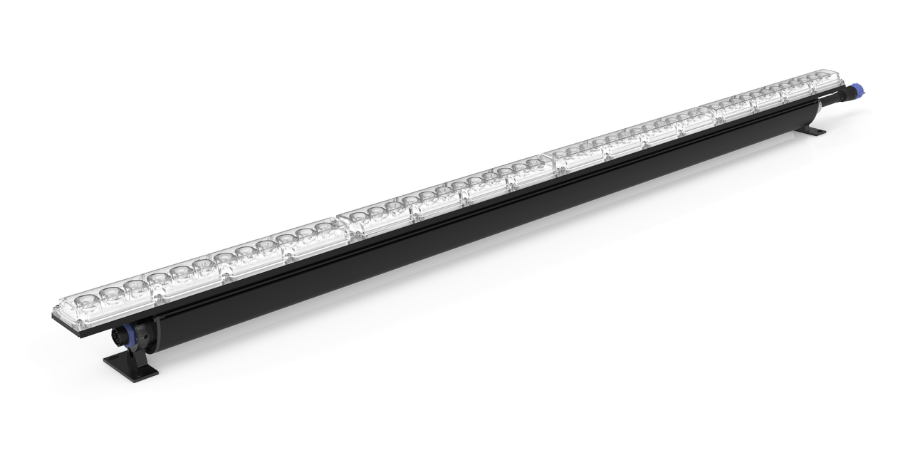

Acclaim Lighting has introduced the Linear XTR H1™. The precision-engineered all-weather linear fixture is the brightest Acclaim linear fixture to date and can achieve long runs up to 360 feet on a single driver (109m). Available in both 1’ and 4’ lengths, the linear fixture features a variety of colors, beam angles, power options, and an extensive range of lens choices.

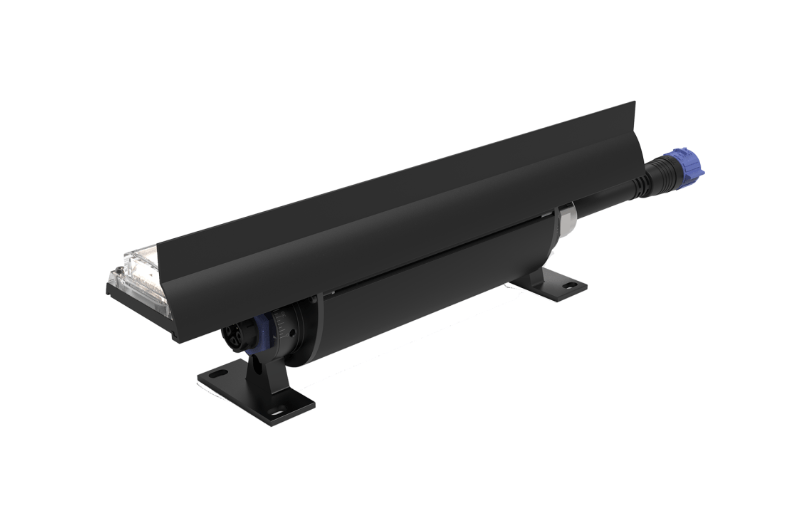

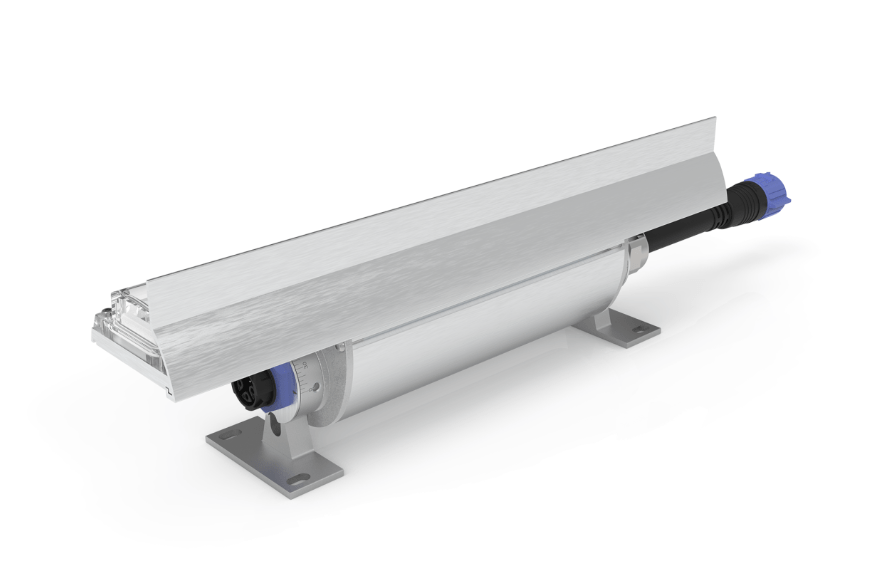

Linear XTR H1 in color features quad-color LEDs for exceptional color mixing performance and homogenized optic color. It is available in QS (RGBW + 3000K), QW4 (RGBW + 4000K), QW6 (RGBW + 6000K), RGBA or Dynamic White, as well as 2700K, 3000K, 3500K, and 4000K static white CCTs. With a minimum 80+ CRI, Linear XTR H1™ offers a wide variety of optics including 10° x 10°, 10° x 35°, 10° x 60°, 25° x 25°, 30° x 10°, 30° x 60°, 40° x 40°, 60° x 10°, 60° x 30°, 60° x 60°, 90° x 10°, and Asymmetric wall wash 60° x 60° + 20° tilt left or right for an extensive array of applications. Additionally, optional glare shields and louvers enable further refinement or development of the light output for specific applications. A complimentary direct view version offers new light output levels for this type of product, previously unseen.
The linear fixture features XTR Link™ Technology, Acclaim’s patent-pending custom internal circuitry and advanced power systems, which allow for interconnection of up to 700’ of linear product and delivers maximum output in a slim form. In addition, Linear XTR H1 includes ColorDrive™ Technology, which enables the user to maximize the performance of single colors with up to four times the output of a traditional color-changing LED fixture and ensures vivid, uniform color with smooth dimming.
Operating at 100-277 VAC, 50/60 Hz, Linear XTR H1 delivers up to 1,606 lumens per foot, while consuming only 22 watts per foot. It provides 0-100% dimming via the industry standard DMX-512A format with RDM for remote configuration. DALI and 0-10V control inputs can also be used when XTR Drivers or optional converters are employed.
IP66 rated for wet locations, Linear XTR H1 performs in temperatures between -40º F to 131º F (-40º C to 55º C). It is IK10-rated for protection against 20 joule impact (40cm distance) and is 3G-rated for high vibration and bridge applications under ANSI C136.31. Linear XTR H1 has a rated life of 150,000 hours L70 and is backed by Acclaim Lighting’s hassle-free, five-year warranty.
