Gaggione’s HADAR Platform Simplifies Advanced Beam Control

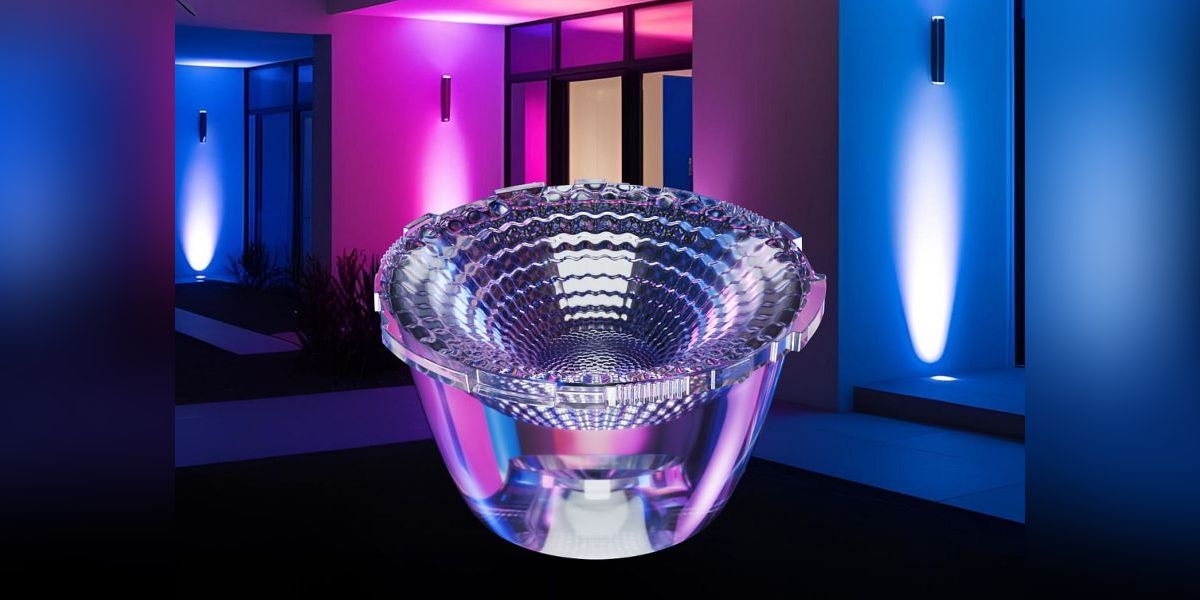

The new HADAR product line from Gaggione, a modular architectural optics platform, is designed to give luminaire manufacturers and lighting designers a more adaptable, future‑ready approach to beam control. HADAR separates the optical system into a high‑performance primary optic and compact interchangeable secondary optics called Windows that allows fast, clean beam changes on site while reducing inventory complexity and supporting more versatile luminaire development.
The HADAR platform spans three diameters – 35 mm, 50 mm and 70 mm – covering compact to midsize COB‑based luminaires. Each size supports fixed beams, wall washer options, zoom versions and Gaggione’s patented GALAXY RGBW color‑mixing base. This combination gives designers a flexible toolset for retail, hospitality, museum, gallery and architectural environments where beam quality and visual comfort are critical.
With extremely low surface brightness, diamond‑turned optical surfaces and compatibility with major connector systems, HADAR supports both performance and manufacturability. The platform also introduces sustainability benefits through reduced material use, fewer bulky optical parts and the option of recycled PMMA in selected lenses.
Technical Specifications of the Gaggione HADAR Optics Family
- Available in 35 mm, 50 mm and 70 mm diameters
- Includes Primary optic + interchangeable Windows
- Beam options (fixed): 10°, 15°, 25°, 30°, 40°, 50° and wall washer
- Window beam options: 12°, 25°, 30°, 40°, 52°, 10°x35° and 10°x45°
- Continuous 10°-45° zoom options with 7 step intelligent rotation stops
- Diamond turned top surface for low glare
- Connectors: B+W, BJB, HEKLA
- Applications: Retail, hospitality, museums, galleries, offices, architectural interiors
- Snap on or twist and lock Windows for onsite beam changes
Learn more about Gaggione’s new HADAR Optics line.
