MaxLite’s L‑Max Snaps into Place with Tool‑Free Press‑Fit Assembly

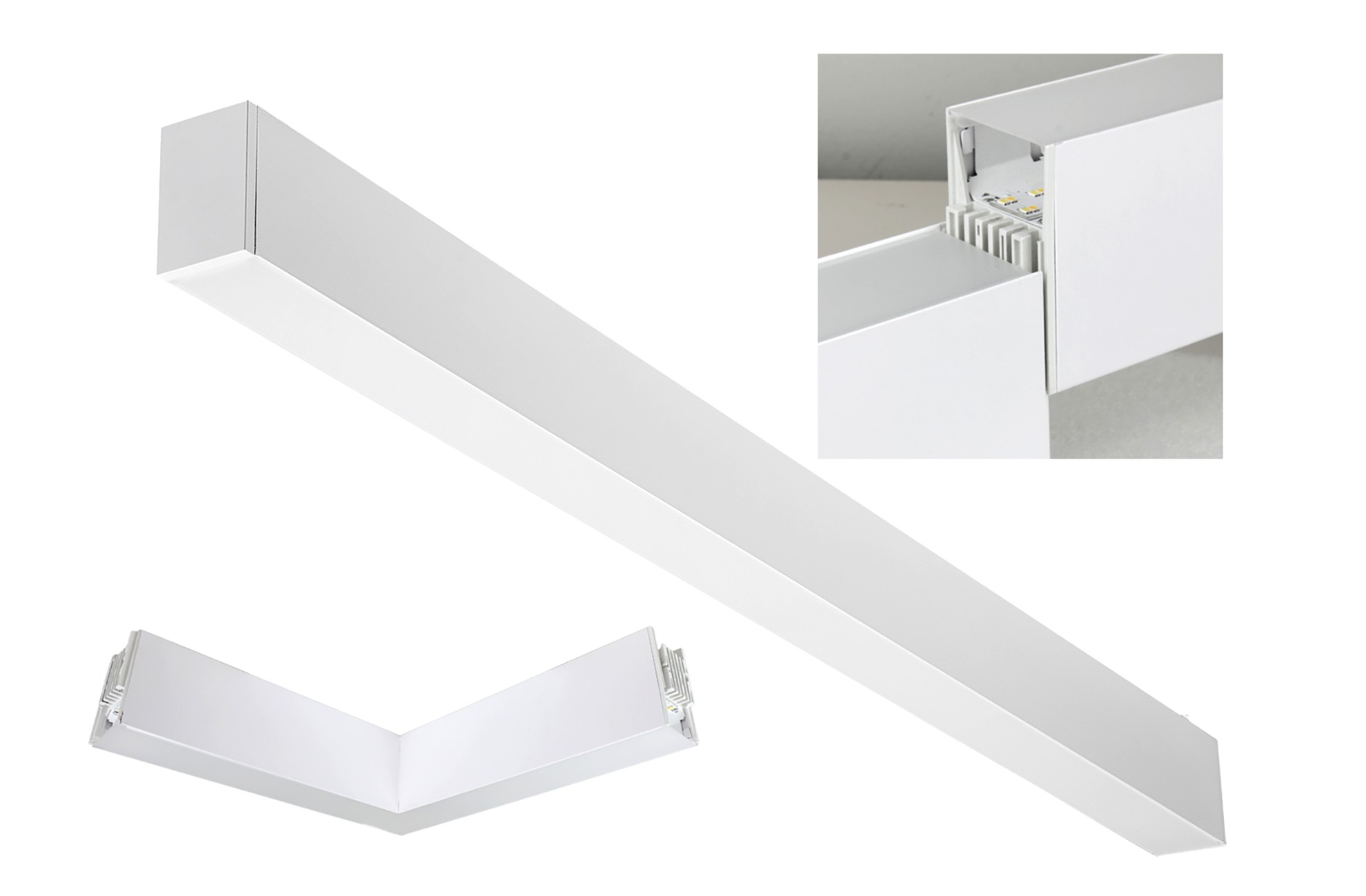

MaxLite LMax linear architectural luminaire

When deadlines tighten, contractors need fixtures that go in smoothly and stay consistent across spaces. MaxLite’s L‑Max Architectural Linear Luminaire is built for exactly that. The second‑generation L‑Max’s toolless press‑fit system allows sections to snap together quickly, supporting long, continuous runs without the alignment challenges common in architectural linear systems.

Crews can deploy the same core luminaire as a pendant, surface/wall, recessed or T‑grid fixture, simplifying planning and reducing SKU sprawl across multispace projects.

In addition to style flexibility, the L-Max provides performance flexibility. The fixture offers adjustable direct/indirect distribution, giving contractors and designers a way to tune visual comfort and ceiling brightness without changing fixtures. Five selectable CCTs, ranging from warm 2700K to crisp 5000K, and a 90 CRI rating ensure consistent color quality across offices, retail, education and other indoor applications.

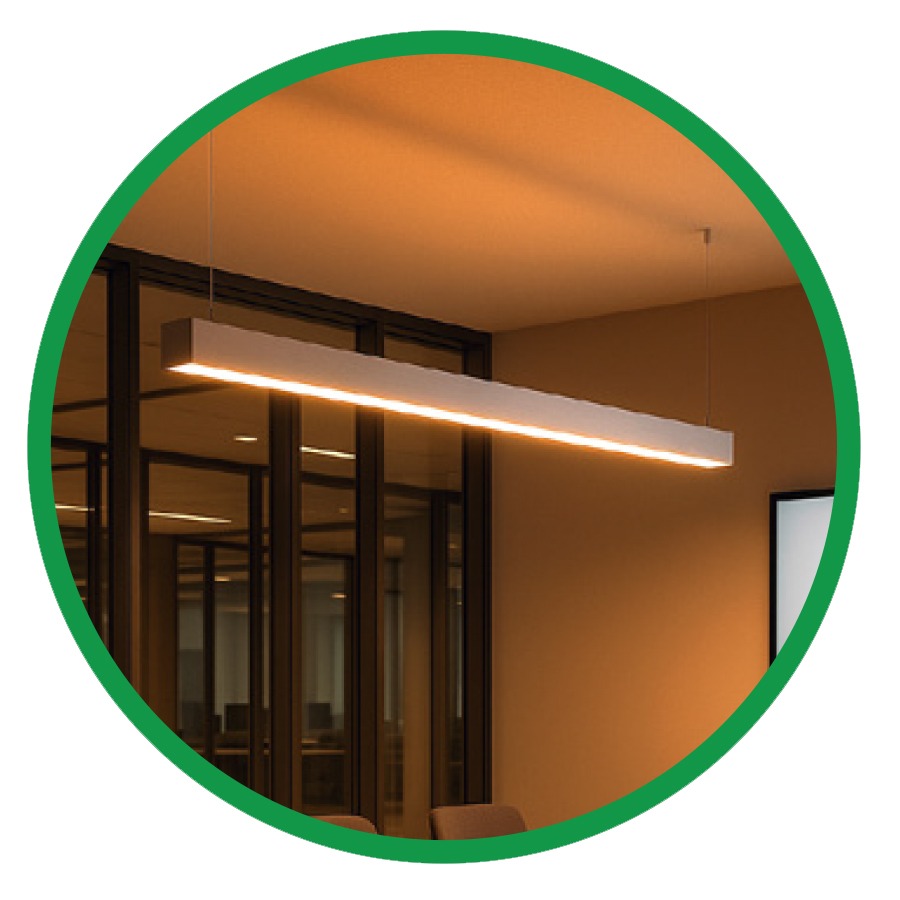

lmax sellsheet 021826

The system is DLC‑listed, opening rebate pathways and supporting energy‑efficient specifications without compromising aesthetics. Length options of 2′, 4′ and 8′ allow crews to build continuous lines of light, while illuminated X, T and L connectors support more complex layouts. Selectable wattage models further reduce stocking requirements and help contractors adapt to last‑minute design changes without reordering.

Technical Specifications for MaxLite’s L-Max Architectural Linear Luminaire (2nd Gen)

  • Mounting Options: Pendant, Surface/Wall, Recessed, T‑Grid
  • Connectivity: Toolless press‑fit system
  • Lengths: 2′, 4′, 8′
  • Distribution: Adjustable direct/indirect
  • CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K (selectable)
  • CRI: 90
  • Lumen Output: 1,100–8,800 lm (model‑dependent)
  • Wattage Range: 10W–80W selectable
  • Certifications: DLC listed, damp location rated
  • Controls: c-Max compatible

Learn more about MaxLite’s 2nd generation L-Max Architectural Linear Luminaire at LEDucation in New York City, April 14-15.
