Corelite Elevated Recessed Linear from Cooper Lighting Delivers Personalized Color Accent

Cooper Lighting: Corelite R6R – Recessed Linear Fixture

Cooper Lighting’s Corelite R6R offering is a sleek 4-inch aperture linear fixture designed to create visual interest by elevating the illumination plane with an architectural colored regress. Available in three lengths, it features a 2″ regressed beveled frame in 14 standard colors. Ideal for offices, classrooms, coves, corridors, and retail environments where differentiated lighting is desired.

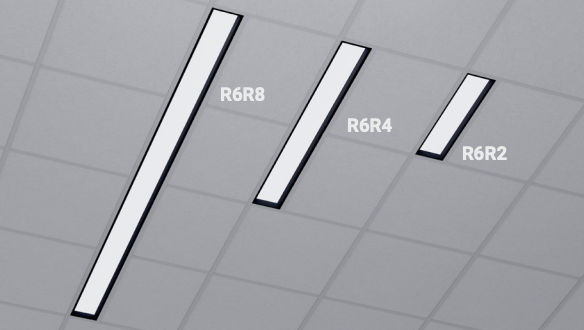

The Corelite R6R pairs flexibility and simplicity with the subtle beauty of a 2″ beveled regress. Offered in 2′, 4′, and 8′ lengths.

Features

Identify your space
  • Soft bevel 2” regressed frame available in 14 standard colors
  • 4” aperture, 6” grid width providing sleek lines of light
  • 2′, 4′, and 8′ sizes available
  • 1% Dimming Available
  • Static or Field Selectable (CCT and Output) Options Offered
  • High performance efficacy up to 105 lm/W
  • Flexible – recessed, drywall, and suspension mount
  • Integrated control available – WaveLinx Pro, WaveLinx Lite, Wavelinx Node

Specifications

Construction

  • Aluminum extruded frame, precision welded and ground for a seamless appearance
  • Steel back plate, attached to the frame with multiple screws to ensure a tight fit
  • 2″ beveled extruded aluminum regress frame factory assembled and installed for easy field installation.

Finish

No more boring grids
  • Fixture housing is high reflectance matte white finish
  • 2” Extruded regress frame is factory assembled and installed
  • Regress frame can be specified in 14 high quality powder coated options
  • Custom RAL colors available – contact factory for details

Mounting

  • Integral grid/EQ clips provided and include suspension / wire retention features
  • Grid clip includes fold up hang points, use FPSUS2 or other desired suspension methods for direct suspension
  • T-grid brackets factory installed for quick, easy and secure attachment to T-grid
  • Factory or field installed flexible conduit with dimming leads options available
  • Drywall frame kits available for hard ceiling recessed installations but must be ordered separately as accessories
  • Surface/Suspension mount kits available – must be ordered separately as accessories
  • Junction / wiring box includes multiple 7/8″ knockouts for quick and easy electrical entry from a variety of directions

Optics

  • Acrylic light guide with embossed optical control features optimizes light extraction
  • Scratch and impact resistant diffuser provides uniformity and reduced glare at the aperture

Controls

  • Standard with 0-10V dimming driver (10% standard with no Driver selection, 1% optional with STD selection)
  • Integrated WaveLinx options provide wireless individual fixture control and enable code compliance, increased energy savings, grouping of fixtures, and connection to WaveLinx control systems
  • DALI 2.0, Lutron, and step-dimming available

Electrical

  • Specify SL1 (Lumen Output) and L8SCT3 (CCT) to enable field selectable lumens and color approximately 500, 750 or 1000 lumens per foot AND 3000K, 3500K or 4000K CCT with easy access selector switch
  • UNV 120 – 277V driver with 0-10V dimming to 10% standard
  • 347V version available
  • DALI 2.0, 1% dimming, Lutron and Step dimming versions available in fixed lumens and fixed colors in 3000K, 3500K or 4000K

Emergency Battery Options

  • 20V-120V integral emergency battery pack comes in 7-watts, 10-watt, or 14-watts
  • Self-diagnostic emergency battery available in 10 watt (NFPA 101 Life Safety Code)
  • Constant power to the LED system for controlled, predictable discharge
  • Integrated test switch/indicator light visible from floor
  • Min. 90-minute backup period for code compliance
  • Integral emergency transfer relay available for generator equipped power systems

Compliance

  • cULus listed for 25C ambient environments
  • IC rated for direct insulation contact
  • RoHS compliant
  • Damp location listed standard
  • IP40 – ingress protection
  • IESNA LM-79 and LM-80 compliant
  • NEMA 410 compliant
  • Design Lights Consortium qualified and classified for DLC Standard
  • Can be used for State of California Title 24 high efficacy luminaire

Limited Warranty

  • Five-year limited warranty standard
  • Ten-year limited warranty available

More information about the Corelite R6R Elevated Recessed Linear from Cooper Lighting

Corelite R6R Elevated Recessed Linear data sheet
