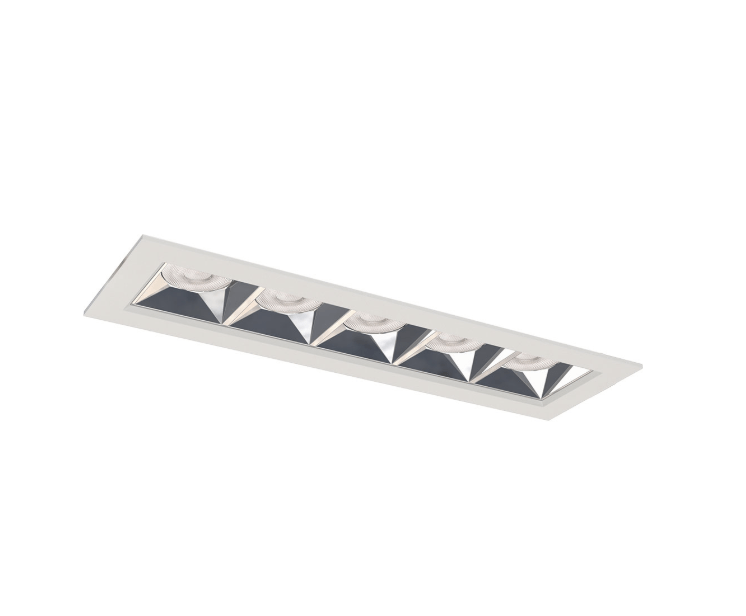

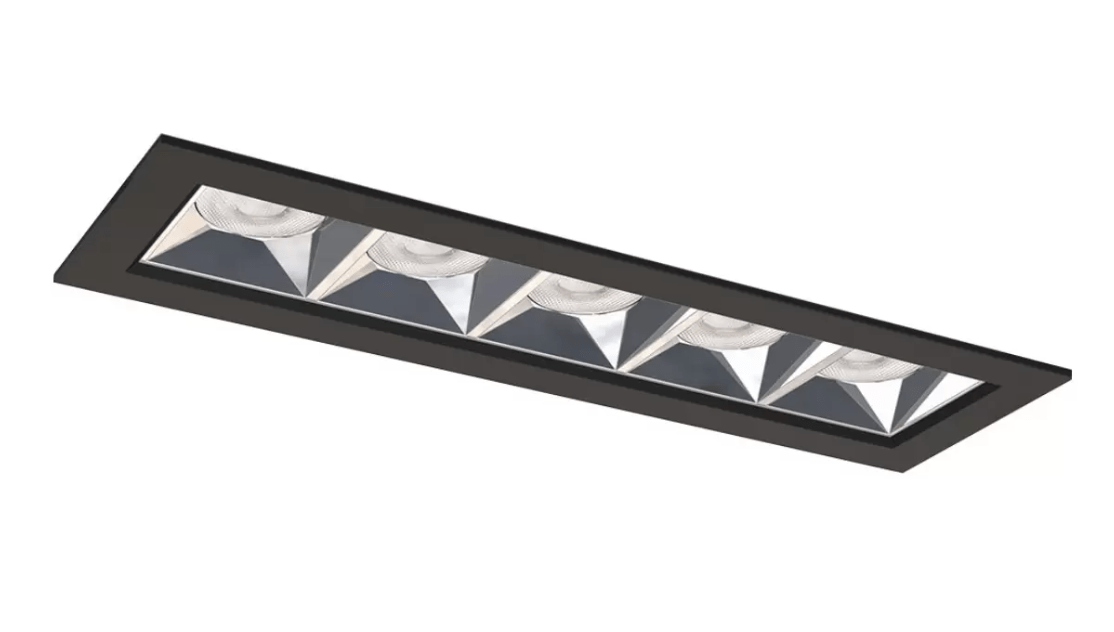

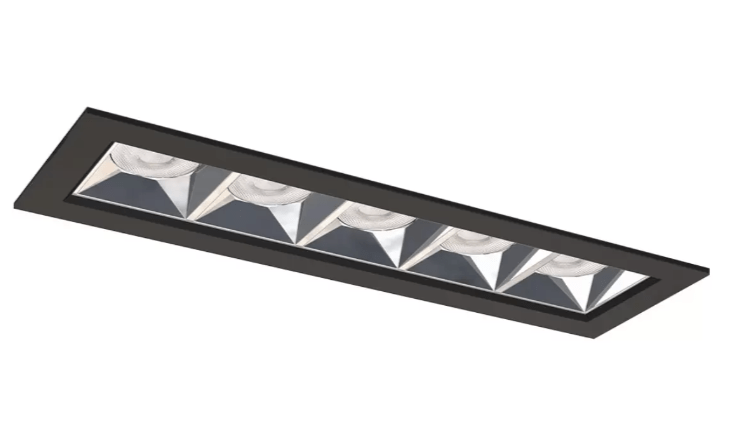

Linear 5-Cell Fixed Recessed Downlight from Liteline
Sirius from Liteline is a 5-cell multi-source downlight, designed to excel in providing excellent light output with up to 1600 lumens delivered. The linear design compliments any contemporary space, with beam angle options ranging from 15°-50°.
The color temperature can be selected on-site to best suit the space, with a switch located on the back of the fixture. Sirius is a high-performance, easy to install downlight solution that is suitable for damp locations and ideal for residential and commercial spaces.
Features
Body
- Die-cast aluminum body. Includes anodized heat sink to provide maximum airflow for the LED light source
LED Characteristics
- This general application light fixture is available in 7, 9-, 12-, 16- and 20-watt LED module that maintains uniform intensity producing up to 1600 lumens
- Typical CRI of 90
- Available with 2700 K, 3000 K, 3500 K, 4000 K or 5000 K color selectable switch
Dimming
- 100~10% dimming capability
- This fixture is compatible with industry standard TRIAC/ELV dimmers
Beam Spread
- The fixture lens provides 15°, 25°, 40° or 50° beam spread
Mounting
- Includes two spring loaded clips to attach to any ceiling material
LED Driver
- Extruded aluminum hardwire box with LED driver with 100-135V AC input
- Includes an FT6 rated cable and DC2.1 connector between driver and fixture approved for use in plenums and suspended ceilings
Quick Connect Push-in Terminals
Three “Quick connect” push-in terminals for fast and easy wiring
Operating Temperature
- -20°C~40°C (4°F~104°F)
Environment
- Suitable for damp locations
- Approved for direct contact with insulation
Specifications
- Application: Ceiling Recess Mount
- Approved: Location Damp
- Beam Angle: 15° / 25° / 40° / 50°
- CCT (Switch): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
- Certification: cETLus
- Class II: Yes
- Trim Color: WH / BK
- Baffle Color: WH / BK / SS / SP / GD
- CRI: 90
- Dimming: Yes
- Dimming Tech: TRIAC / ELV
- Energy Star: Yes (Up to 16W)
- Hole Cut: 7¾ ” × 2″ (197×50mm)
- Input: 100-135V AC, 50 / 60Hz
- LM79: Yes
- LM80: Yes
- Lumens: Up to 1600
- Lumens Per Watt: Up to 95
- Lumen Maintenance: 70% @ 50,000 hrs
- Power Factor: 0.98
- Warranty: 5 Years
- Wattage: 7 / 9 / 12 / 16 / 20
More information about the Sirius 5-cell multi-source downlight from Liteline
