A.L.P. Launches Octagonal Large Area Edgelit Panel for Commercial Fixtures

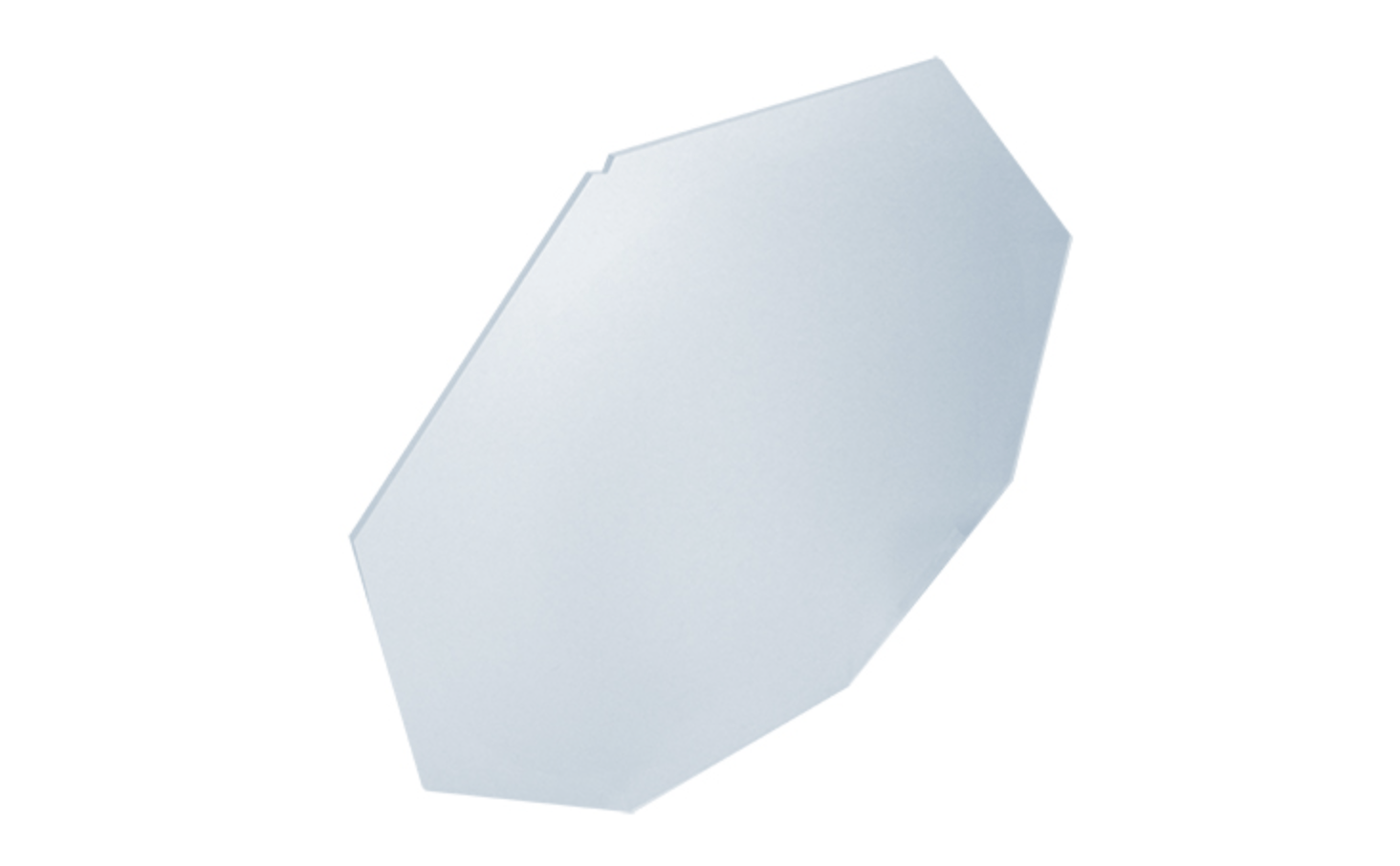

A.L.P. Octagonal Large Area Edgelit Panel

A.L.P. has announced a new commercial lighting optic, the Octagonal Large Area Edgelit Panel. This newly designed lens offers OEMs a combination of performance, efficiency, and versatility.

A.L.P.’s Octagonal Large Area Edgelit Panel is engineered for a variety of commercial applications, such as parking garages and similar settings. The panel’s wide beam angle produces uniform and glare-free illumination, ensuring optimal visibility and comfort. Featuring an octagonal shape with a centered round optic, the panel’s slim profile allows it to be used with rigid LED boards to facilitate alignment and heat sinking.

Injection molded from acrylic for durability and UV resistance, the octagonal panel offers reliability and performance for many commercial fixture designs. It also can be laser cut to smaller finished sizes on request.

“The Octagonal Large Area Edgelit Panel was designed with visual comfort in mind,” said Tom Barnes, Vice President and Business Manager. “We are pleased to offer a solution that prioritizes performance, efficiency, and design versatility for lighting OEMs.”

Features

  • Octagonal edgelit panel with centered round optic
  • Injection molded acrylic for durability and UV resistance
  • Extremely low profile for design flexibility
  • Octagon shape allows for rigid LED board to facilitate alignment and heat sinking
  • Enhances visual comfort
  • 63-degree batwing distribution, ideal for parking garage retrofit
  • Approximates IES distributions 1, 3, 4, 5.
  • Can be laser cut to smaller finished sizes upon request

Specifications

  • Dimensions:
    • Octagon 15.5” across the flats
    • Round Optic 14” diameter
    • Lens Thickness 4mm
    • Custom sizes available
  • Standard Material: Acrylic
  • Option: Miro4 reflector
  • Lamp Data: The Octagonal Large Area Edgelit Panel is 4mm thick and can be used with any LED source that is less than 4mm in the x or y dimension.
  • Service Life: The service life of the Octagonal Large Area Edgelit Panel is virtually unlimited when used within the recommended temperature limit of 70ºC.

Applications

  • Large area lighting fixtures in applications such as parking garages, retail settings, offices and light industrial locations

More information about the Octagonal Large Area Edgelit Panel from A.L.P.

Related Articles

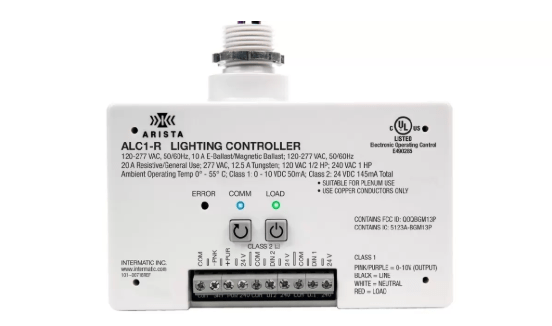

Intermatic ALC1-R lighting controller
| | |
