LED Vapor Proof Fixtures from SATCO|NUVO Available With and Without Sensor & EM Backup

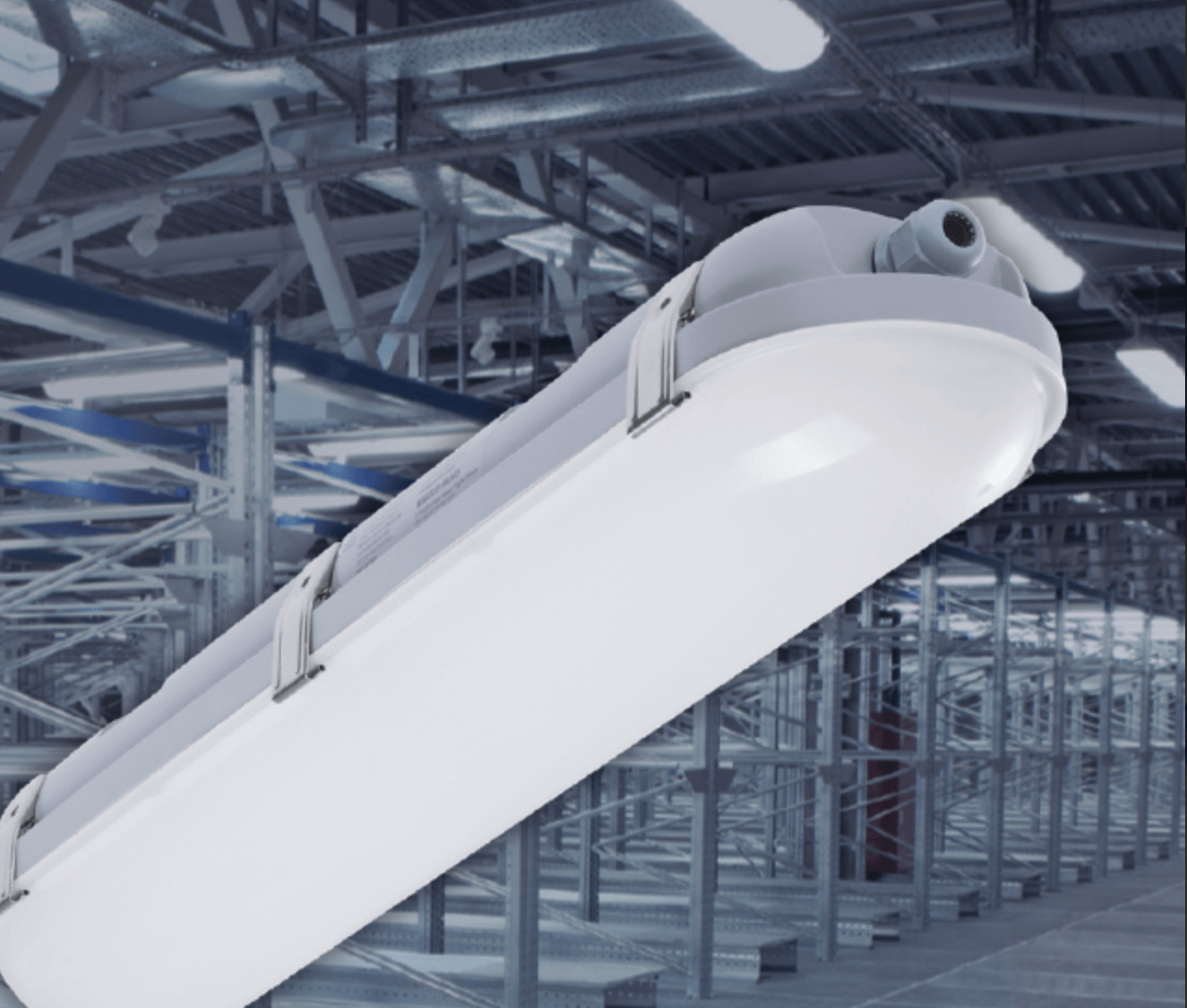

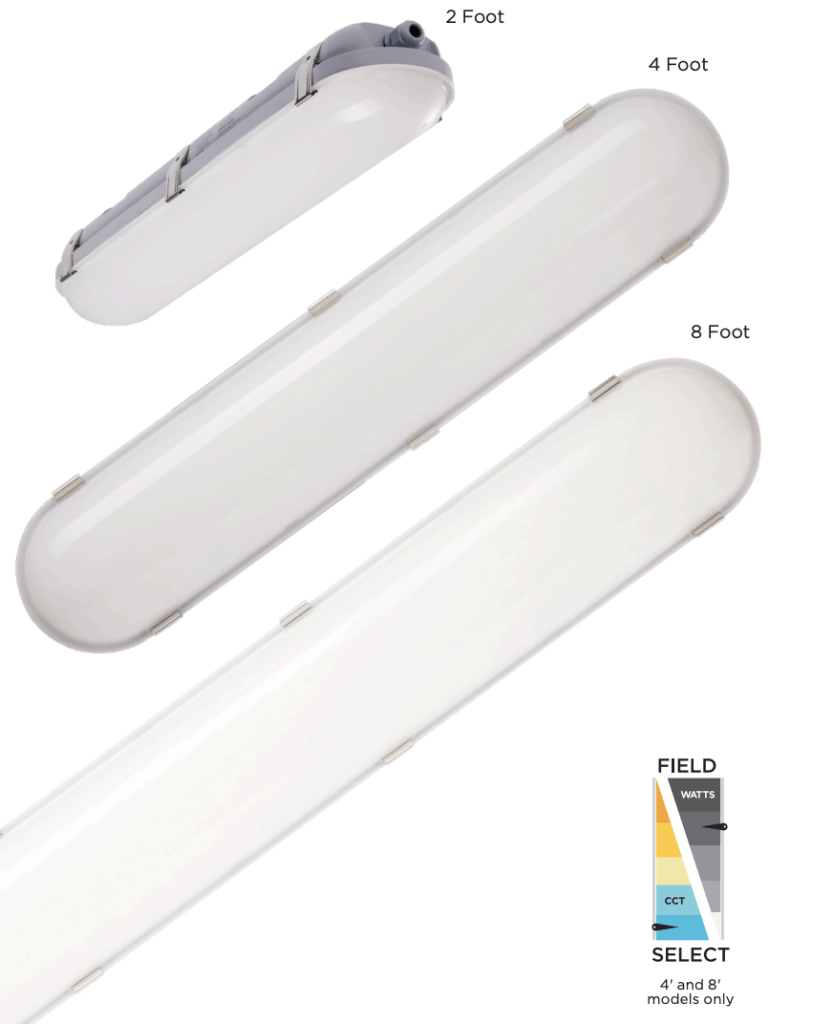

The SATCO|NUVO LED Vapor Proof Fixture Series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction. Select 4′ and 8′ fixtures also offer wattage selectability for maximum flexibility.
The series includes models with or without integrated microwave sensors for motion-based control and added efficiency. Now, the line expands with emergency battery backup options, with or without integrated microwave sensors, providing 90 minutes of illumination during power loss. From everyday applications to critical performance needs, SATCO|NUVO Vapor Proof fixtures offer reliable lighting solutions.
Features
- Emergency Backup Models Available
- CCT Selectable
- Wattage Selectable Options
- 120-347V
- IP65 & IK08 Rated
Applications
- Industrial
- Warehouses
- Utility Rooms
- Parking Garages
- Agriculture
Specifications
- Range Voltage: 120V-347V
- Frequency: 50/60Hz
- Power Factor: >0.96
- Dimmable: 0-10V Dimming
- Surge Protection Rating: 2kV
- CRI: 80
- Efficacy: Up to 134 LPW
- CCT Selectable: 3000K/4000K/5000K
- Beam Angle: 120°
- Location Rating: Wet
- IP Rating: IP65
- IK Rating: IK08
- Ambient Operating Temperature: -40°C (-40°F) to +45°C (+113°F)
- Housing Material: Polycarbonate (PC)
- Housing Finish: Gray
- Lens Material: Polycarbonate (PC)
- Functional Life: 50,000 Hours
- Approvals: cULus
- Warranty: 5 Years
